Content Security Policy (CSP) support

Content Security Policy (CSP) can be set by application and servers to tighten security by:

  • Only allowing resources to be loaded from pre-defined sources
  • Only allowing XHR calls to pre-defined sources
  • Disabling inline JavaScript in HTML

This conflicts with the UXM Web Agent, because it's normally loaded from the UXM servers at ://repo.mcg.dk/uxm/web/latest/uxm_web_agent.min.js and data is send to the cloud collector customerInstance.uxmapp.com

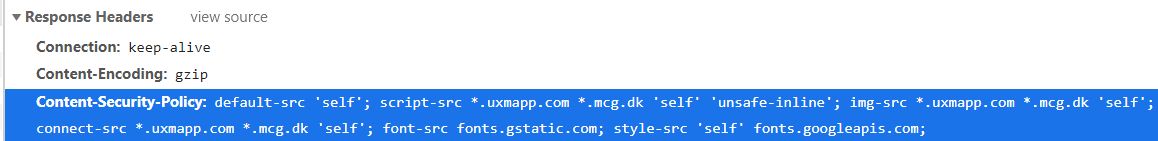

It can be seen in the headers set by the main document:


It can also be set in the HTML metadata which can be seen in "View Source"



The following configuration of application/servers can be done to support the UXM Web agent by adding the CSP directive below to your CSP configuration.

  script-src \*.uxmapp.com \*.mcg.dk 'self' 'unsafe-inline'; img-src \*.uxmapp.com
  \*.mcg.dk 'self'; connect-src \*.uxmapp.com \*.mcg.dk 'self';

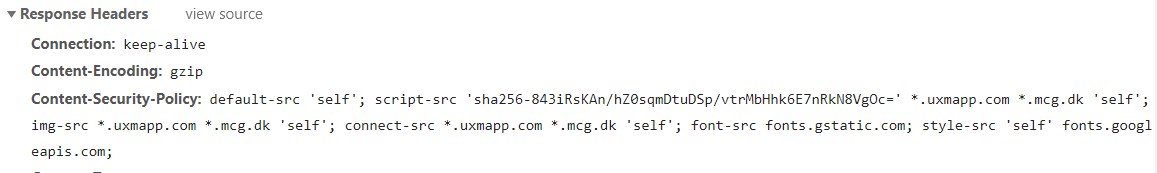

The headers will then look like the image below:

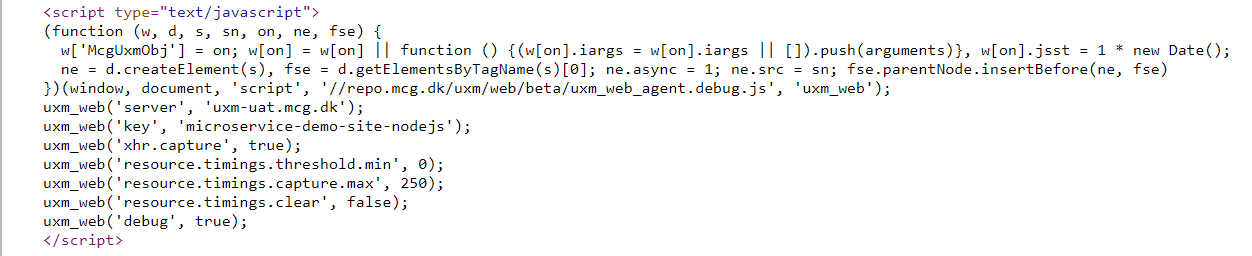

'unsafe-inline' can be avoided if you SHA256 encode the content of the script tag, Google Chrome developer tools shows the SHA256, for example:


Becomes:


Adding Chromes recommended hash to the CSP policy allows the script to be executed without 'unsafe-inline' directive.


Please avoid using dynamic values in the config, like trace.id, this will break the SHA256 because new values is generated during each load of the page.




Troubleshooting​

Loading of UXM Web agent JavaScript fails due to CSP​

  1. Allow UXM Web agent JavaScript to be loaded from *.mcg.dk or *.uxmapp.com via (script-src *.uxmapp.com *.mcg.dk 'self')

mceclip2.png 2. Move UXM Web agent JavaScript local to server

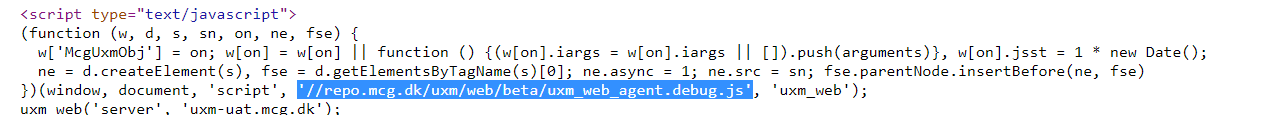

You can copy the JavaScript locally to your server and load it from there by altering the load path:




Sending of results fails due to CSP​

The developer console in FireFox and Chrome will show the CSP error "Refused to connect to 'https://x.uxmapp.com/data/browser/' because it violates the following Content Security Policy directive: "default-src 'self'". Note that 'connect-src' was not explicitly set, so 'default-src' is used as a fallback."


You have set incorrect img-src and connect-src domain names in your CSP policy, add *.uxmapp.com or *.mcg.dk.

  img-src \*.uxmapp.com \*.mcg.dk 'self'; connect-src \*.uxmapp.com \*.mcg.dk 'self';
